Punch Cards vs Solid-State Storage: Two Generations of Data Handling

When a stack of cardboard was the database

Anyone who has dropped a folder of loose papers can imagine the anxiety of dropping a deck of punched cards. The order of the cards was part of the data, so a spilled tray could mean hours of re-sorting. That small fear is a good introduction to what this old medium was: not a file on a disk but a physical stack of objects, each one a row of data you could hold.

Solid-state storage is the opposite in almost every sense. Nothing moves, nothing is visible, and a chip smaller than a coin can hold more than a warehouse of cards. The pairing looks lopsided, but it is a useful way to see how far the basic job of keeping information has traveled, and how much of the older idea, a pattern that a machine can read back, quietly remains.

From looms to the census

The idea of controlling a machine with holes in cards is older than computing. Joseph Marie Jacquard developed his card-controlled loom in France in 1804 to 1805. As the Science Museum Group explains it, a set of pins probes each card: where a hole lines up a pin goes through, and where the card is solid the pin is blocked. That choice decides which warp threads are lifted, and so shapes the woven pattern. The cards were, in effect, a stored program for a weaving machine.

Herman Hollerith applied the principle to data. After the 1880 census left the Census Bureau with more data than it could tabulate, the Bureau held a competition in 1888, which Hollerith won. His 1889 patent covered electrical tabulation, and his system processed the 1890 census. Operators fed cards into a reader whose pins passed through holes into mercury cups, closing circuits that registered each hole on a counter. This was data storage and data processing in a single physical object.

A standard that lasted half a century

Hollerith founded the Tabulating Machine Company in 1895, and in 1911 it merged with others to form CTR. Early Hollerith cards had 45 columns; in 1928 IBM introduced its standard card with 80. Each card could represent about 80 characters, and by 1937 IBM was producing between five and ten million of them a day at a plant in Endicott, New York.

Cards carried business record-keeping long before computers were common, and they became a standard way to enter programs into early machines; one card often held a single line of code. As late as the mid-1950s, card sales made up roughly a fifth of IBM's revenue. They gave way over time as magnetic tape, disks and other media offered faster, denser alternatives.

Charge in a cell, no moving parts

The newer medium has a very different origin. In 1980, Fujio Masuoka at Toshiba led a project to design an affordable, high-capacity memory chip. His team designed a memory cell using a single transistor, where conventional EEPROM needed two, a change that lowered cost. The name flash was chosen for the way the chip could erase quickly. He presented the design in 1984, and Toshiba's first NAND flash chip reached the market in 1989, according to IEEE Spectrum.

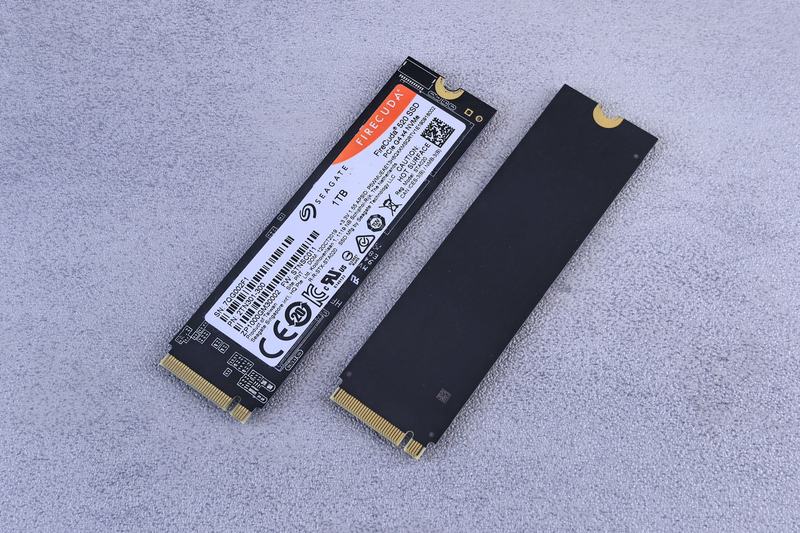

Flash of this kind is the basis of today's mass storage. A flash cell stores bits as trapped electrical charge, so data persists when the power is off. A controller inside the drive reads and writes cells, corrects errors and spreads wear, all invisibly to the user.

How flash grew from chips into drives

Early flash went into cameras and small devices. In 1991, SanDisk built a prototype solid-state drive module for IBM, pairing a flash array with a controller that detects and corrects defective cells. A first enterprise solid-state unit had already appeared in 1978, but it used battery-backed RAM and disks, not flash. Samsung shipped a high-volume notebook with SSDs in 2006, which the Computer History Museum treats as a sign of mainstream adoption.

That gradual path is a reminder that inventions arrive in stages: the chip idea in the early 1980s, commercial parts in the late 1980s, prototype drives in 1991 and everyday use in the 2000s. The same distinction between invention, launch and adoption applies to cards, whose road from Hollerith's patent to IBM's standard card took nearly forty years. Storage changes slowly for good reasons: people trust their data to what has proven reliable, as the story of floppy disks and cloud storage also shows.

Measuring the gap

On speed, cards are limited by mechanical feeding, and Hollerith's early tabulator handled around 80 cards a minute, while solid-state drives reach data electronically with no moving parts. On capacity, one card held about 80 bytes, so any large data set was a physical burden, and flash puts vastly more in a pocket. Portability follows: a memory card is trivial to carry, while a serious deck needed trays and boxes.

Energy and durability are more balanced. Neither medium needs power to keep data, and cards cost nothing to keep on a shelf, though the machines that read them were heavy and power-hungry. Cards fear humidity and fire, while flash resists shock but wears out when rewritten. A well-kept deck can also be read by eye, which no chip can offer.

Wear is the newer medium's particular weakness. Flash cells tolerate only a limited number of rewrites, so controllers spread activity across the chip to delay the day when cells give out. A card deck suffers the opposite problem: it rarely wears from use, since a card is punched once, but every trip through a reader risks a jam or a crease. Each medium fails in a way that reflects how it was built.

Fixing, filing and controlling data

Repairability and maintenance show different kinds of labor. A damaged card could be re-punched, and a lost record could be recreated by someone who knew the format. Card handling meant filing, duplicating and guarding order, which took staff and space. Flash hides those chores inside firmware, but if the drive fails, the fix is usually replacement and the data may be lost, which is why backups matter.

Privacy and control also differ. A card deck can be locked in a drawer, though anyone holding it can read it. Flash can be encrypted, yet data can be copied in seconds and invisibly. Both cases remind us that control comes from habits and safeguards rather than from the medium alone. A similar shift from physical to digital access is discussed in the comparison of printed encyclopedias and digital knowledge platforms.

What carried over from a cardboard age

Much of the vocabulary and thinking of modern data handling was set in the card era: records, fields, files, batches. The habit of thinking of information as discrete, machine-readable units, stored once and read repeatedly, came from that world. So did the expectation that data could outlive the moment of its creation without any electricity to sustain it.

What was lost is the tangibility. A card deck could be held, shuffled, inspected and recopied. Flash asks the user to trust invisible cells and firmware. For readers interested in how the underlying electronics changed, the shift from vacuum tubes to transistors explains the switching technology that made chips like these possible.
