Ink, Linen and Light

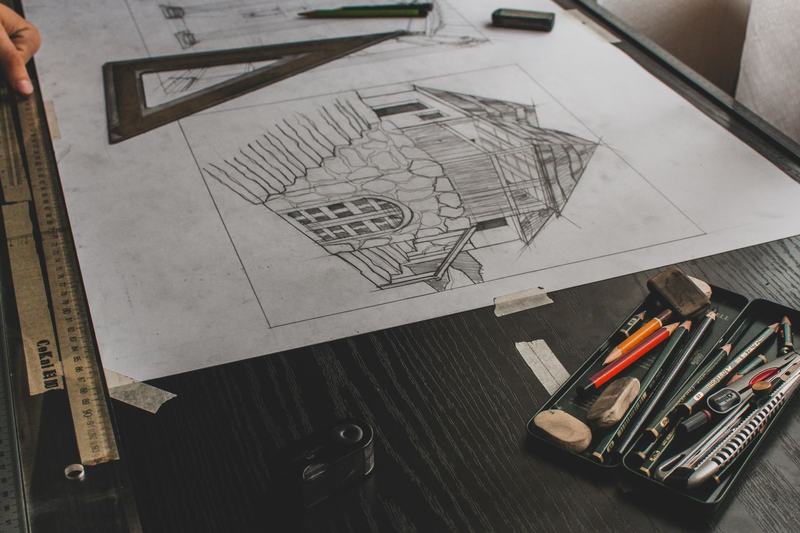

For most of the industrial age, a machine or a building existed first as a drawing, and the drawing was made with tools that would look familiar in any design school today: a board, a straightedge, triangles, compasses and pencils or pens. The draftsperson worked on tracing paper or cloth, in ink where the drawing had to last, and each sheet was a one-off object produced by careful hand work.
The difficulty was copying. Workshops, contractors and clients all needed their own sets, and redrawing by hand was slow and error-prone. The University of Houston's account notes that engineers once relied on junior copyists, sometimes called tracing boys, until light-sensitive paper offered a better path.
How Blueprints Changed the Office
John Herschel invented the cyanotype process in 1842, using two iron-based chemicals to make paper that turns blue when exposed to light. Engineers did not adopt it widely until the 1870s, when they began exposing translucent drawings in frames under sunlight to make white-line copies on a blue ground. The technique made it cheap to produce many identical copies from one original.
It also shaped how drawings were made. Translucent tracing paper and linen let light through, so drafters produced originals designed to be copied. The blueprint gave way to other reproduction methods in the twentieth century, and by the 1950s the diazo process, which printed dark lines on a light background, had replaced it. The name blueprint survived long after the blue color was gone.
A Light Pen and a Dissertation
The idea of drawing on a screen took shape in 1963, when Ivan Sutherland completed his doctoral work at MIT on a program called Sketchpad. According to the Computer History Museum, it ran on the experimental TX-2 computer and let a person create line drawings interactively with a light pen, with tools for completing shapes, resizing them and repeating elements. It was a research demonstration, but it showed that a drawing could be a live, editable object.
Industry was working in parallel. IBM and General Motors developed DAC-1, a system for computer-assisted design of automobiles that used an IBM 7090 mainframe and a graphics console with a light pen. The museum's sources give slightly different dates, describing it as released in 1963 in one place and in 1964 in another, and agree that GM later discontinued it in the late 1960s. Early CAD was expensive and confined to large organizations. Its appeal was that a design could be manipulated as a model, where before automobile designers had worked on paper and revisions had been laborious and costly. Yet the systems needed a mainframe, specialist staff and a room to house them, so drafting boards stayed in nearly every other office.
Drawing Goes to the Desktop

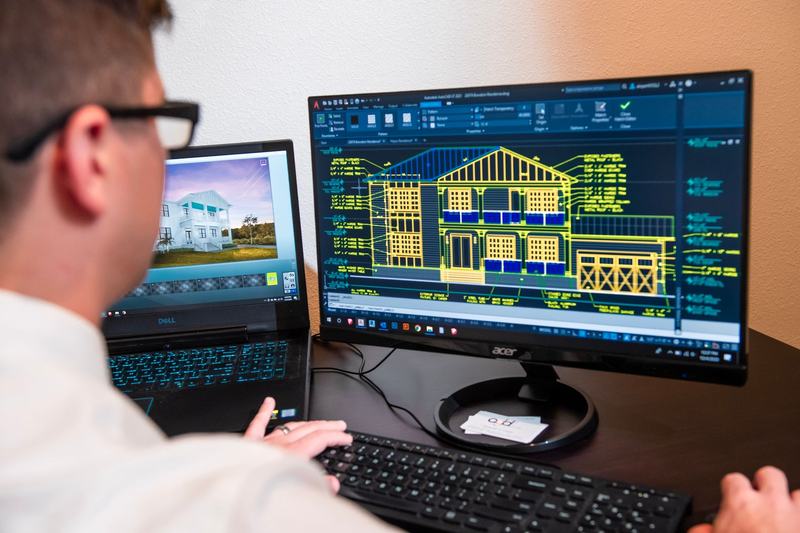

CAD reached ordinary design offices when it could run on personal computers. Autodesk's founders showed AutoCAD at Comdex in 1982, according to the panel transcript held by the Computer History Museum, and the program became a common tool for two-dimensional drawing on desktop machines. As computers grew more powerful, CAD added three-dimensional modeling, which let a designer build a part once and generate many views from it.
This changed the nature of a drawing. On paper, each view is a separate set of lines that must agree with the others. In a model, views are outputs, so a change to one dimension updates every related view. The drawing stopped being the design itself and became a report generated from a design stored as data. That idea also opened the door to other uses of the same model, such as checking whether parts fit together, estimating quantities and sending shapes to machines that cut or build them, none of which a paper sheet can do on its own.
Where the Two Methods Differ
Speed is the plainest difference. A hand drawing requires every line to be placed manually, and a revision may mean redrawing a sheet. CAD copies, mirrors and edits in seconds, and it keeps repeated parts consistent. Capacity follows the same pattern: paper drawings fill cabinets, while digital files can hold complex assemblies that would be impractical on paper.
Portability and energy point in different directions. A file moves across a network at once, but a pencil and paper need no electricity, and a printed sheet is easy to read outdoors. The tools of the old method are also simple and cheap to replace, whereas the digital method depends on hardware, software and licensing that can become obstacles. Neither is entirely free of dependence; it is simply a different kind of dependence, and a design office usually has to decide which kind it is more willing to manage.
Errors, Revisions and Trust
Every design changes, so revision handling matters as much as first drafting. On paper, changes are made by erasing and redrawing, and the history of what changed may live only in notes. In CAD, earlier versions can be saved and compared, and corrections can ripple through a model automatically. That makes updates faster and reduces some kinds of inconsistency.
There is a caution as well. A clean digital drawing can look authoritative even when the underlying numbers are wrong, and a model can hide errors behind a polished view. Good practice in both media includes checking dimensions, reviewing drawings with fresh eyes and understanding the physical result. Skilled hand drafting builds that understanding, which is one reason it is still taught.
Skills That Carried Over
Much of the drafter's vocabulary moved into software. Orthographic views, sections, hatching, dimensioning conventions and layers all came from the drawing tradition, and layers echo the overlays once made on separate tracing sheets. Designers who learned on paper often find that the geometric thinking transfers directly to a screen.
What faded is the craft of the hand itself: consistent lettering, clean ink lines and the physical care of originals. The change parallels other shifts in office work, such as the move from typewriters to word processors, where a manual skill became an editing function. Drawings also relate to maps and other visual records, as in the comparison of printed maps and GPS navigation.
Why Paper Still Has a Place
Hand drafting persists in sketching, teaching and situations where a quick diagram matters more than a precise model. A pencil sketch is often the fastest way to think through an idea, and drawing by hand helps students understand geometry before they let software do the work. Printed drawings also remain useful on job sites, where they can be marked up without a device.
The strongest position is to use each where it fits. Digital tools handle revisions, repeated parts and complex assemblies far better, and they connect to production. A beginner who learns only on screen may miss the physical sense of scale that comes from drawing a line by hand, while a designer who learns only on paper may struggle to manage a modern project's volume of changes. Paper keeps drawing accessible and independent of equipment. As with the shift covered in the comparison of printing presses and digital publishing, the newer method absorbs the older method's conventions while changing who can do the work and how quickly.
A contextual conclusion
Manual drafting and CAD both turn ideas into buildable instructions, but they suit different situations. CAD is far better for revisions, repeated parts and complex assemblies, and it links directly to analysis and manufacturing. Hand drafting remains useful for sketching, teaching and settings where equipment is limited. Each carries its own risks, from the slow work and bulk of paper to dependence on software and file formats. Skilled designers often draw by hand first and model digitally afterward.
- Best for speed on changing designs Computer-Aided Design — Edits, copies and updates take seconds, and related dimensions can follow automatically.
- Best for simplicity Manual Drafting — Paper and instruments need no power, software or training beyond drawing skill.
- Best for early sketching and learning Both — Freehand and instrument drawing build geometric understanding, while software helps refine the resulting ideas.
Historical impact
Manual drafting and blueprint copying let engineers and architects share precise plans among many workers, which supported the factories, railways and buildings of the industrial age. CAD then changed design offices: drawings became data that could be analyzed and sent directly to production. The shift also changed the profession, since much of the routine linework once done by teams of draftspeople became a function of software.
How the two are related
CAD grew directly out of the drawing tradition. Sketchpad, the 1963 program by Ivan Sutherland, let a person draw with a light pen on a screen, and early systems aimed to reproduce the familiar geometry of the drawing board. Later programs added three-dimensional models and links to manufacturing, but the vocabulary of lines, layers, sections and dimensions came from hand drafting.
